PEX FITTINGS
Back to product list

PEX FITTINGS


Email address:

Download PDF Submit your Inquiry

Description

Model Specifications

Picture Size HL Part No.

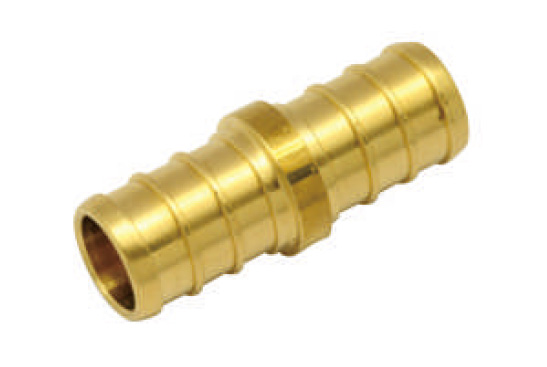

PEX COUPLING PX-S3/8 × 3/8 PXC22
PX-S1/2 × 3/8 PXC32
PX-S1/2 × 1/2 PXC33
PX-S3/4 × 1/2 PXC43
PX-S1/2 × 3/4 PXC44
PX-S1 × 3/4 PXC54
PX-S1 × 1 PXC55
PX-S1 1/2 × 11/2 PXC77
PX-S1 1/2 × 1 1/4 PXC76
PX-S11/4 × 11/4 PXC66
PX-S11/4 × 1 PXC65
PX-S11/4 × 3/4 PXC64
Px-S5/8 × 5/8 PXC5/8
Px-S5/8 × 1/2 PXC5/8-3
Px-S5/8 × 3/4 PXC5/8-4


Picture Size HL Part No.
MULTISLOT COUPLING PEX XPB PX-BS3/8 × 3/8 PXBC22
PX-BS1/2 × 1/2 PXBC33
PX-BS1/2 × 1/2 PXBC44
PX-BS1 × 1 PXBC55


Picture Size HL Part No.
ADAPTER FEMALESWEAT X CRIMP PX-S3/8 × 3/8F PXFSA22
PX-S3/8 × 1/2F PXFSA23
PX-S1/2 × 1/2F PXFSA33
PX-S1/2 × 3/4F PXFSA34
PX-S3/4 × 1/2F PXFSA43
PX-S3/4 × 3/4F PXFSA44
PX-S5/8 × 1/2F PXFSA5/8-3
PX-S5/8 × 3/4F PXFSA5/8-4
PX-S3/4 × 1F PXFSA45
PX-S1 × 1F PXFSA55
PX-S1 1/4 × 1 1/4F PXFSA66
PX-S1 × 3/4F
 		PXFSA54
PX-S11/2 × 11/2F PXFSA77


Picture Size HL Part No.
ADAPTER MALE SWEAT X CRIMP PX-S3/8 × 3/8M PXMSA22
PX-S3/8 × 1/2M PXMSA23
PX-S1/2 × 3/8M PXMSA32
PX-S1/2 × 1/2M PXMSA33
PX-S1/2 × 5/8M PXMSA3-5/8
PX-S1/2 × 3/4M PXMSA34
PX-S3/4 × 3]4M PXMSA44
PX-S5/8 × 1/2M PXMSA5/8-3
Px-S5/8 × 3/4M PXMSA5/8-4
PX-S3/4 × 1/2M PXMSA43
PX-S3/4 × 1M PXMSA45
PX-S1 × 1M PXMSA55
PX-S1 1/4 ×1 1/4M PXMSA66
PX-S1 1/2 × 1 1/2M PXMSA77
PX-S1 × 3/4M PXMSA54


Picture Size HL Part No.
90°ELBOW PEX X PEX PX-L3/8 PXE22
PX-L1/2 × 3/8
 		PXE32
PX-L1/2 PXE33HB
PX-L1/2 PXE22
PX-L3/4 × 1/2(LB) PXE43-LB
PX-L3/4 × 1/2 PXE43
PX-L3/4 PXE44HB
PX-L3/4 PXE44
PX-L1 PXE55
PX-L11/4 PXE66
PX-L5/8 PXE5/8


Picture Size HL Part No.
90°ELBOW PEX X MALE SWEAT PX-L1/2 × 1/2M PXMSE33
PX-L1/2 × 3/4M PXMSE34
PX-L5/8 × 3/4M PXMSE5/8-4
PX-L3/4 3/4M PXMSE44
PX-L1 × 1M PXMSE55


Picture Size HL Part No.
PEX TEE PX-T3/8(LB) PXT222-LB
PX-T3/8 × 3/8 × 1/2 (LB)
 		PXT223-LB
PX-T1/2 × 3/8 × 3/8(LB) PXT322-LB
PX-T1/2 ×3/8 × 1/2 PXT323
PX-T1/2 × 1/2 × 3/8(LB) PXT332-LB
PX-T1/2 PXT333HB
PX-T1/2 PXT333
PX-T1/2 × 1/2 × 3/4 PXT334
PX-T1/2 × 1/2 × 3/4 (LB) PXT334-LB
PX-T3/4 × 1/2 × 1/2 PXT433
PX-T3/4 × 1/2 × 1/2 (LB) PXT433-LBHB
PX-T3/4 × 1/2 × 1/2 (LB) PXT433-LB
PX-T3/4 × 1/2 × 3/4 PXT434
PX-T3/4 × 1/2 × 3/4 HBPXT434
PX-T3/4 × 3/4 × 3/8 PXT442
PX-T3/4 × 3/4 × 3/8(LB) PXT442-LB
PX-T3/4 × 3/4 × 1/2 PXT443HB
PX-T3/4 × 3/4 × 1/2 PXT443
PX-T3/4 × 3/4 ×1/2 (LB) PXT443-LB
PX-T3/4 PXT444HB
PX-T3/4 PXT444
PX-T3/4 × 3/4 × 1 PXT445
PX T3/4 × 3/4 × 1(LB) PXT445-LB
PX-T1 × 3/4 × 1/2 PXT543
PX-T1 × 3/4 × 1/2 PXT543-LB
PX-Tl × 3/4 × 3/4 PX1544
PX-T1 × 3/4 × 3/4 (LB) PXT544-LB
PX-T1 × 1/2 × 3/4 PXT534
PX-T1 × 1/2 × 1/2 PXT533
PX-T1 × 1/2 × 3/4(LB) PXT534-LB
PX-T1 × 1/2 × 1 PXT535
PX-T1 × 1 × 1/2
 		PXT553
PX-T1 × 1 × 3/4 P54L
PX-T1 × 1 × 3/4(LB) PXT545
PX-T1 × 3/4 × 1 PXT555
PX-T1 1/4 × 1 1/4 × 11/4
 		PXT666
PX-T1 1/4 × 11/4 × 1 PXT665
PX-T1 1/4 × 11/4 × 3/4 PXT664
PX-T1 1/4 × 1 × 1 PXT655
PX-T1 1/4 × 3/4 × 3/4 PXT644
PX-T5/8 PXT5/8


Picture Size HL Part No.
90°SWIVEL ELBOW (COPPER NUT) SE3/8 × 1/2 PXSE23T
SE1/2 × 1/2 PXSE33T
SE3/4 × 3/4 PXSE44T


Picture Size HL Part No.
PEX PLUG PX-DT3/8 PXP2
PX-DT1/2 PXP3
PX-DT3/4 PXP4
PX-DT5/8 PXP5/8
PX-DT1 PXP5
PX-DT1 1/4 PXP6
PX-DT1 1/2 PXP7
Picture Size HL Part No.
THREAD ADAPTER CRIMP X MPT
 		PX-S3/8 × 3/8M PXMTA22
PX-S3/8 × 1/2M PXMTA23
PX-S1/2 × 3/8M PXMTA32
PX-S1/2 × 1/2M PXMTA33
PX-S1/2 × 3/4M PXMTA31
PX-S5/8 × 1/2M PXMTA5/8-3
PX-S5/8 × 3/4M PXMTA5/8-4
PX-S3/4 × 1/2M PXMTA43
PX-S3/4 × 3/4M PXMTA44
PX-S3/4 ×1M PXMTA45
PX-S1 × 3/4M PXMTA54
PX-S1 × 1M PXMTA55
PX-S1 1/4 × 1M PXMTA65
PX-S11/4 × 11/4M PXMTA66
PX-S1 1/2 × 11/2M PXMTA77
Px-S5/8 × 3/4M PXMTA5/8-4


Picture Size HL Part No.
THREAD ADAPTER CRIMP X FPT PX-S3/8 × 3/8F PXFTA22
PX-S3/8 × 1/2F PXFTA23
Px-S1/2 × 1/2F PXFTA33
PX-S1/2 × 3/4F PXFTA34
Px-S5/8 × 3/4F PXFTA5/8-4
PX-S3/4 × 1/2F PXFTA43
PX-S3/4 × 3/4F PXFTA44
PX-S3/4 × 1F PXFTA45
PX-S1 × 3/4F PXFTA54
PX-S1 × 1F PXFTA55
PX-S11/2 × 11/2F PXFTA77
PX-S1 1/2 × 11/4F PXFTA76
PX-S1 1/4 × 11/4F PXFTA66
PX-S11/4 × 1F PXFTA65
Px-S3/4 × 11/4F PXFTA46
PX-S1 × 11/4F PXFTA56
PX-S5/8 × 1/2F PXFTA5/8-3


Picture Size HL Part No.
90°ELBOW PEX XMPT PX-L3/R × 3/RM PXMTE22
PX-L1/2 × 3/8M PXMTE32
PX-L1/2 × 1/2M PXMTE33
PX-L1/2 × 3/4M PXMTE34
PX-L3/4 × 1/2M PXMTE13
PX-L3/4 × 3/4M PXMTF44
PX-L3/4 × 1M PXMTE45
PX-L1 × 3/1M PXMTE54
PX-L1 × 1 1/4M PXMTE56
PX-L1 × 1M PXMTE55
PX-L5/8 × 3/4M PXMTE5/8-4


Picture Size HL Part No.
90°ELBOW PEX X FEMALE SWEAT PX-L3/8 × 1/2F PXFSE23
PX-L1/2 × 1/2F PXFSE33
PX-L1/2 × 3/4F PXFSE34
PX-L5/8 × 3/4F PXISE5/8-4
PX-L3/4 × 1/2F PXFSE43
PX L3/4 × 3/4F PXFSE44
PX-L 1 × 1F PXFSE55


Picture Size HL Part No.
WALLPLATE 90° ELBOW PEX XFTG PX-DZL1/2 × 3/8F PXDE32
PX-DZL1/2 × 1/2F PXDE33
PX-DZL1/2 × 3/4F PXDE34
PX-DZL3/4 × 1/2F PXDE43
PX DZL3/4 × 3/4F PXDE44


Picture Size HL Part No.
WALLPLATE TEE PEX X FTG DZT1/2 × 1/2 × 1/2F PXDT333F


Picture Size HL Part No.
MULTISLOT TEE PEX X PB PX-BT1/2 PXBT333


Picture Size HL Part No.
SWIVEL ADAPTER PEX X FPT (PLASTIC NUT) SA3/8 × 1/2 PXSA23T
SA1/2 × 1/2 PXSA33T
SA1/2 × 3/4 PXSA34T
SA3/4 × 3/4 PXSA44T


Picture Size HL Part No.
SWIVEL ADAPTER PEX X FPT (COPPER NUT) SA3/8 × 1/2 PXSA23T
SA1/2 × 1/2S PXSA33T
A1/2 × 3/4S PXSA34T
A3/4 × 3/4 PXSA44T


Picture Size HL Part No.
90°SWIVEL ELBOW(PLASTIC NUT) SE3/8 × 1/2 PXSE235
SE1/2 ×1/2 PXSE33S
SE3/4 × 3/4 PXSE44S


Picture Size HL Part No.
90°ELBOW PEX X FTG PX-L1/2 × 1/2F PXFTE33
PX-L3/4 × 3/4F

 		PXFTE44
PX-L3/4 × 1/2F PXFTE43


Picture Size HL Part No.
TEE PEXX FEMALE SWEAT PX-T1/2 × 1/2 × 1/2F
PXTFSA333


Picture Size HL Part No.
90°ELBOW PEX X UN PX-L1/2 × 3/8KJ
PXUNE32
PX-L1/2 × 1/2KJ PXUNE33


Picture Size HL Part No.
ADAPTER PEX X UN PX-S1/2 × 3/8KJ
 		PXUNA32
PX-S1/2 × 1/2KJ PXUNA33


Picture Size HL Part No.
TEE PEX XUN PX-LQT1/2 × 1/2 × 1/2 PXUNT333-A
PX-LQT5/8 × 5/8 × 1/2 PXUNT5/8-5/8-3


Picture Size HL Part No.
PEX SOLDERED JOINT HLPXCMA33 HLPXCMA33
