Brass Tube
Back to product list

Brass Tube


Email address:

Download PDF Submit your Inquiry

Description

Model Specifications

Alloy No Temper Chemical Composition Physical Properties
Cu Pb Fe Zn As Total Impurities Tensile Strength≥ Elongation ≥ Vickers Hardness/HA Brinell Hardness/HA
H62

 O 60.5~63.5

 0.08
 0.15 Remaining Amount 0.5 300 43% 60~90 55~85

H2

370 18% 85~120 80~115
H 400
≥115 ≥110
H62Al
 O 60.5~61.5 0.05 0.15 Remaining Amount A1:0.7~0.9 0.5 300 43% 60~90 55~85

H2

370 18% 85~120 80~115
H 440 ≥115 ≥110
H63
 O 62.0~65.0 0.08 0.15 Remaining Amount 0.5 300 43% 60~90 55~85

H2

370 18% 85~120 80~115
H 400 ≥115 ≥110
H63As
 O 61.5~63.5 0.02 0.10 Remaining Amount 02~0.15 0.5 300 43% 60~90 55~85

H2

370 18% 85~120 80~115
H 440 ≥115 ≥110
H65
 O 63.0~68.5 0.09
0.07 Remaining Amount 0.45 290 43% 55~85 50~80

H2

370 18% 90~120 85~115
H 430 ≥110 ≥105
H65As
 O 63.0~68.5 0.09 0.07 Remaining Amount 02~0.06 0.45 290 43% 55~85 50~80

H2

370 18% 90~120 85~115
H 430 ≥110 ≥105
H68
 O 67.0~70.0 0.03 0.10 Remaining Amount 0.3 280 43% 55~85 50~80

H2

370 18% 95~125 90~120
H 420 ≥115 ≥110
H68As
 O 67.0~70.0 0.03 0.10 Remaining Amount 02~0.06 0.3 280 43% 55~85 50~80

H2

370 18% 95~125 90~120
H 420 ≥115 ≥110
H70 O 68.5~71.5 0.03 0.10 Remaining Amount 0.3 280 43% 55~85 50~80

H2

370 18% 95~125 90~120
H 420 ≥115 ≥110
H70AS O 68.5~71.5 0.03 0.10 Remaining Amount 02~0.06 0.3 280 43% 55~85 50~80

H2

370 18% 95~125 90~120
H 420 ≥115 ≥110
H80 O 78.5~81.5 0.05 0.05 Remaining Amount 0.3 240 48% 45~75 40~70

H2

320 25% 85~120 80~115
H 390 ≥115 ≥110
H85 O 84.0~86.0 0.05 0.05 Remaining Amount 0.3 240 42% 45~75 40~70

H2

310 18% 80~110 75~105
H 370 ≥105 ≥100
H90 O 89.0~91.0 0.05 0.05 Remaining Amount 0.3 220 42% 45~75 40~70

H2

300 18% 75~105 70~100
H 350 ≥100 ≥95
H96 O 95.1~95.9 0.03 0.10 Remaining Amount 0.3 200 42% 45~75 40~70

H2

290 18% 75~105 70~100
H 330 ≥100 ≥95


SIZE
Outside Diameter Wall Thickness
0.35~0.4 0.4~0.5 0.5~1.0 1.0~1.5 2.5~3.2 3.2~4.0 4.0~5.0 5.0~5.5
4~8
8~15
15~32
32~40
40~50
50~65
65~75

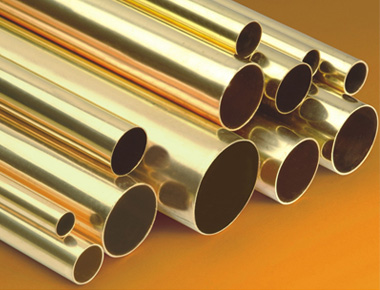

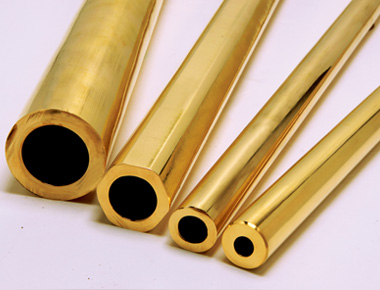

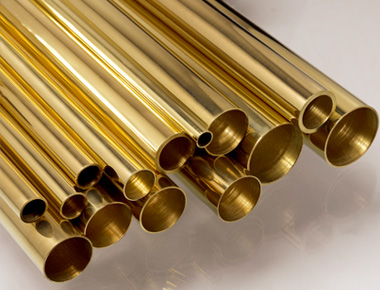

Product Picture
